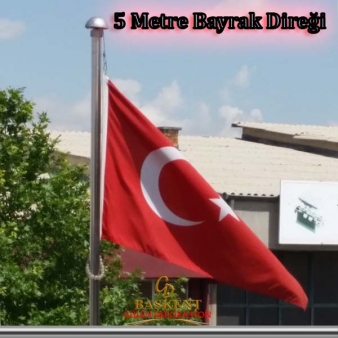

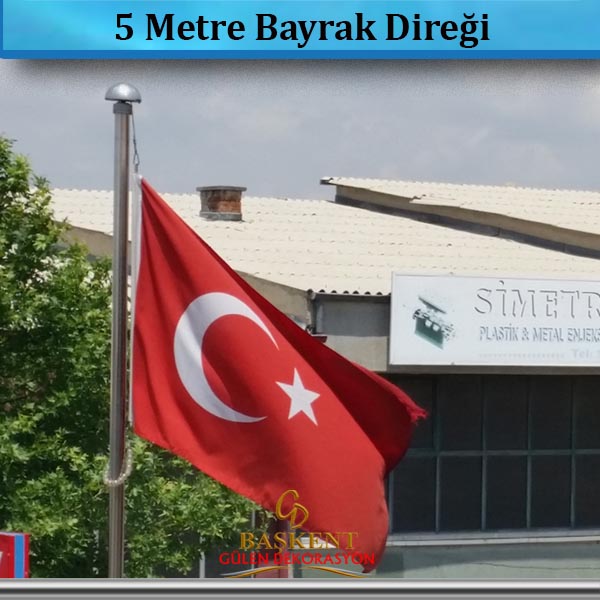

5 Metre Paslanmaz Çelik Sonsuz Dönerli Bayrak Direği

•Stainless Steel 5 Meter Flagpole Technical Specifications

Click here to download the technical specifications in PDF format.

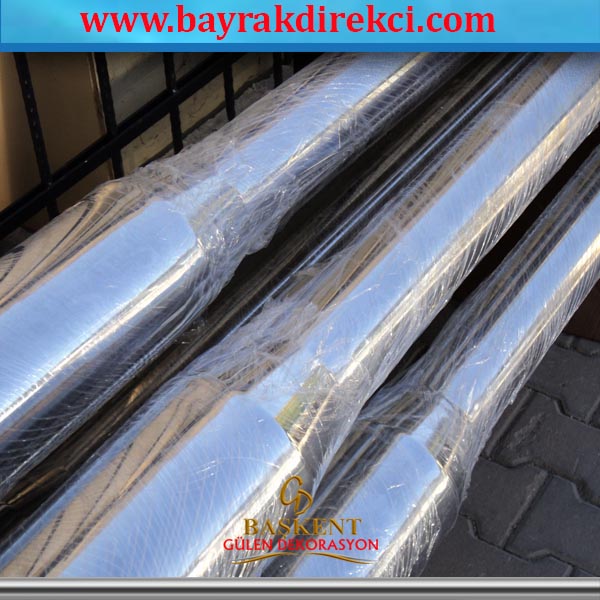

• Made from 304 grade stainless steel.
• The endless rotating mechanism used in the product was manufactured by us.
• The product will be installed by us using an anchoring system.

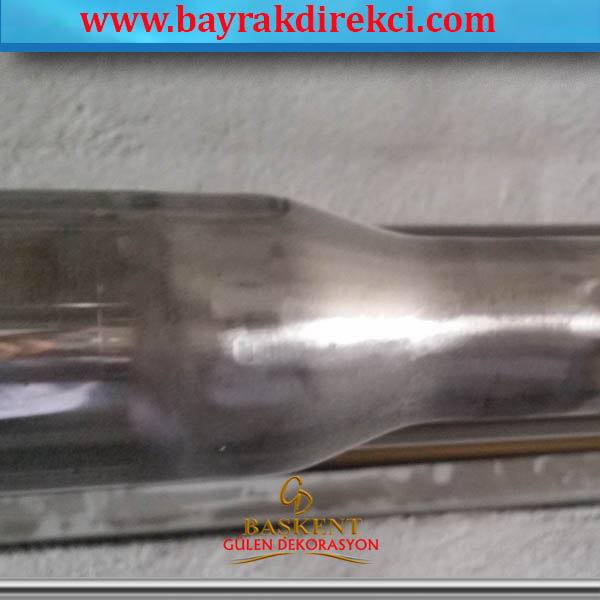

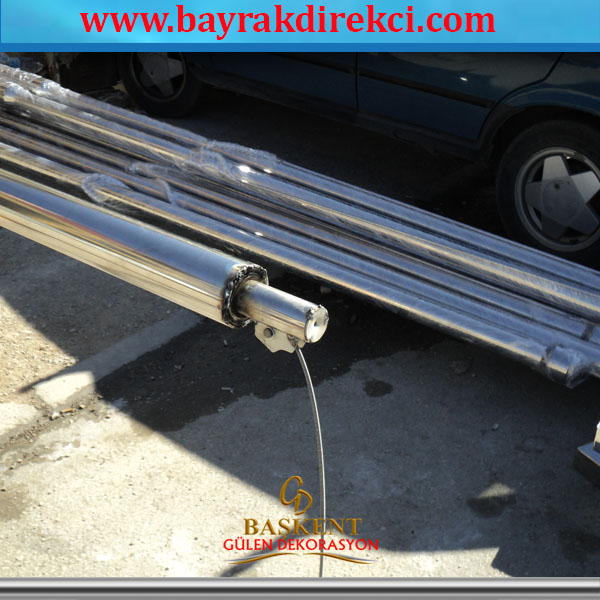

• This product consists of two parts: Part 1 is 89 mm x 3 meters with a material thickness of 2 mm. Part 2 is 60 mm x 2 meters with a material thickness of 2 mm. These two parts are welded together to form a 5-meter flagpole.
• The anchoring system is calculated and implemented according to the wind and ground conditions of the area where the flagpole will be mounted.

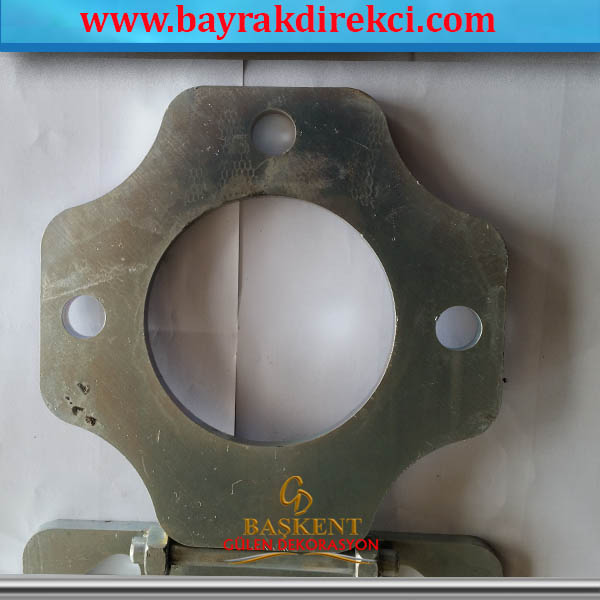

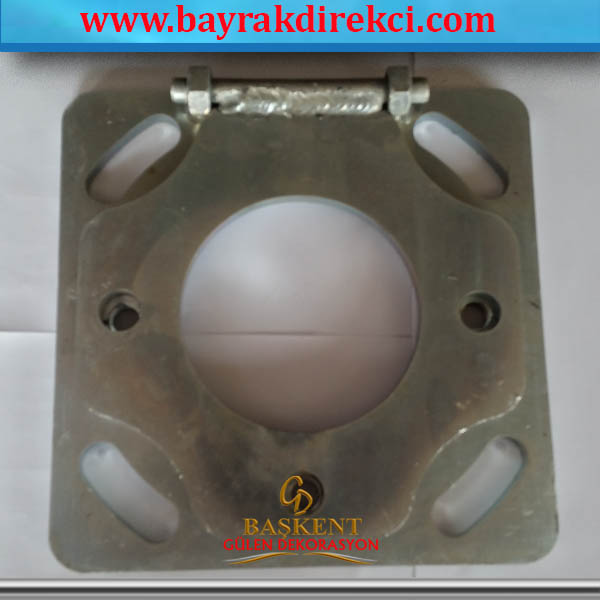

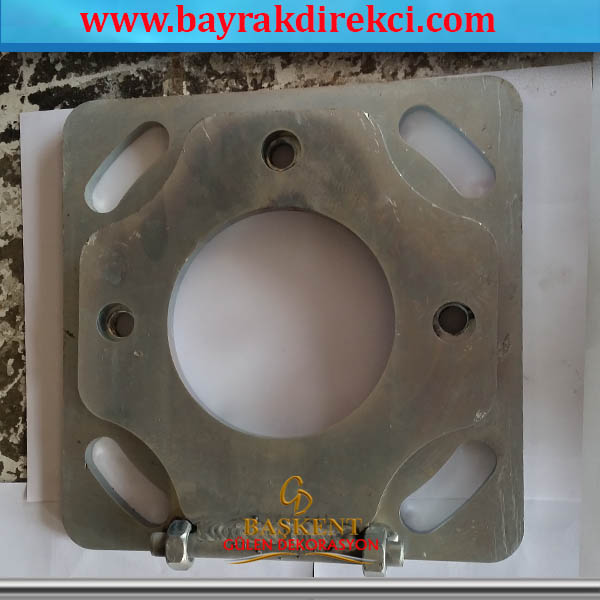

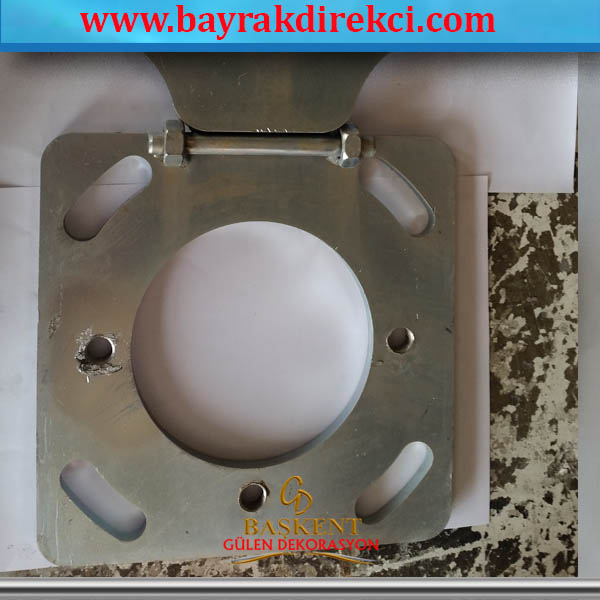

• All of our products are horizontal mounting systems. Since assembly is done with flanges, flange thicknesses are applied according to the product and the ground.
• The tilting mechanism of the flagpole allows for repairs if the flagpole is damaged by adverse conditions during or after assembly, making reassembly easier.
• Depending on whether you are using the Turkish flag or corporate flags, a stainless steel Q14 mm flag holder is included with the product.

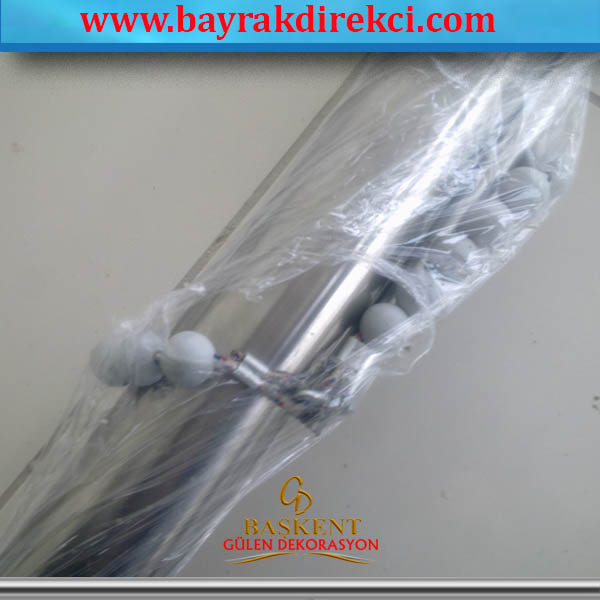

• To ensure the flag waves without getting tangled, a product made of beads, which we call a rosary, and which wraps around the flagpole, is also offered along with the product.

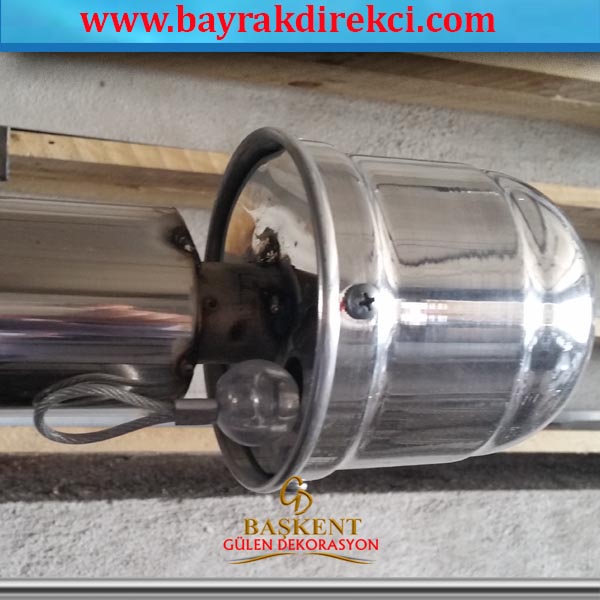

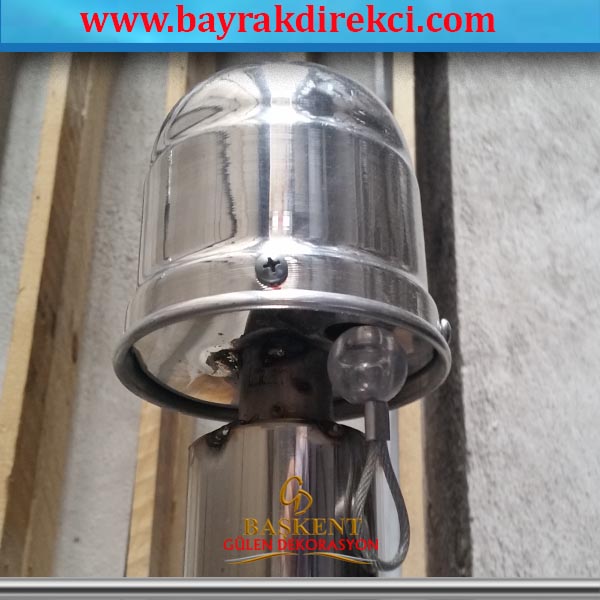

• Our rope, which passes through the inside of the flagpole and is connected to a special mechanism, goes through the so-called "endless rotating" cap and is attached to the stainless steel tensioning rod of the flag. As a result of this process, our flag waves without tangling, and the changing or lowering of the flag to half-mast is facilitated by the lever mechanism at the base of the flagpole.

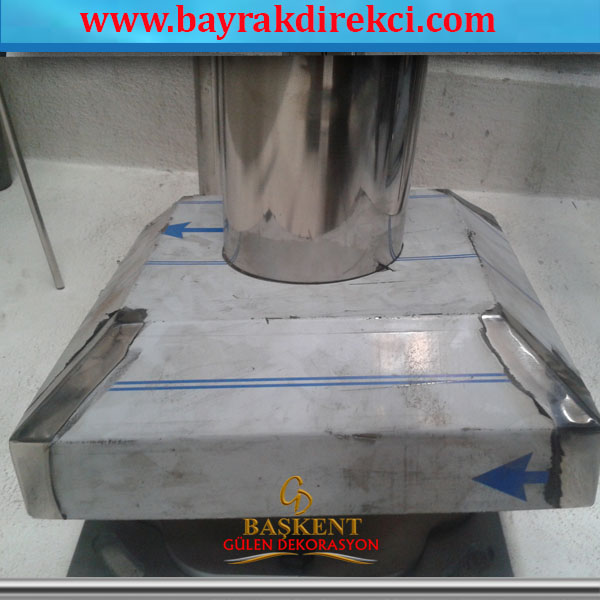

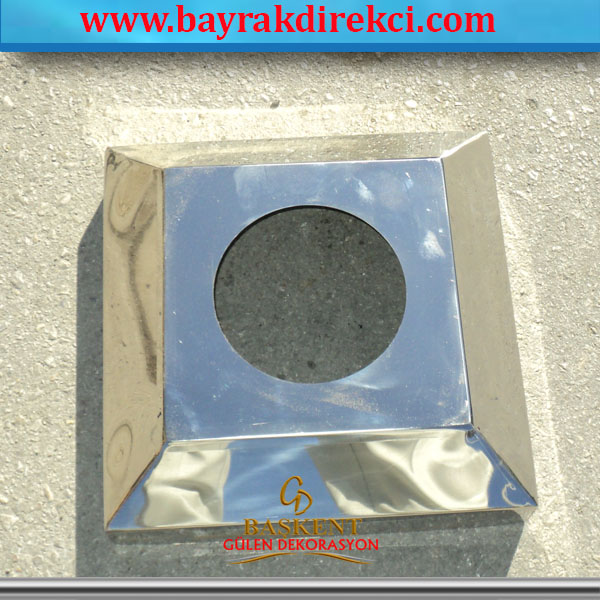

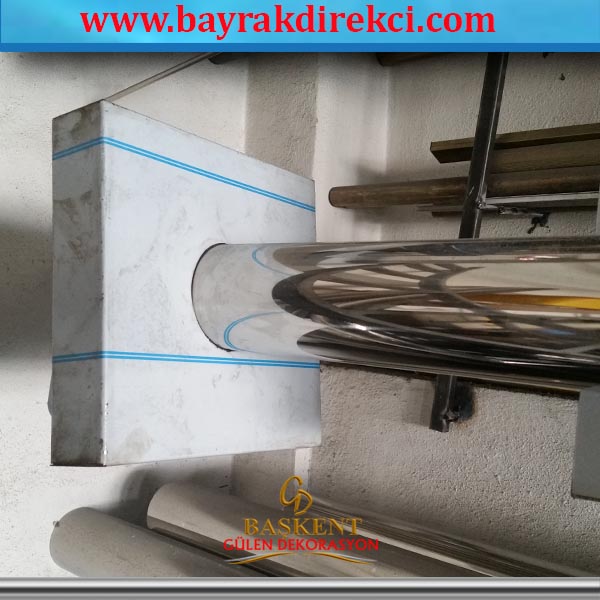

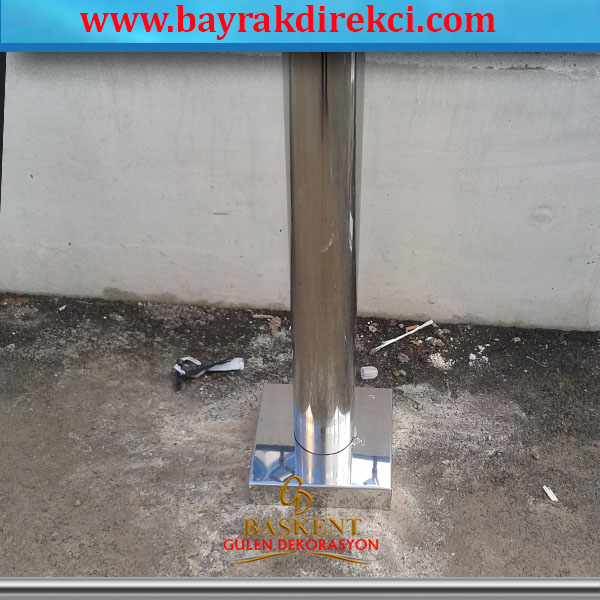

• A square rosette is fitted over the mounting bracket to conceal the post-assembly reclining mechanism and connection processes. This protects the anchorage from external factors and provides an aesthetically pleasing appearance.

Our company, Başkent Gülen Dekorasyon, manufactures stainless steel flagpoles in two finishes: satin and polished. For pricing and technical information, please contact us via email or phone.
